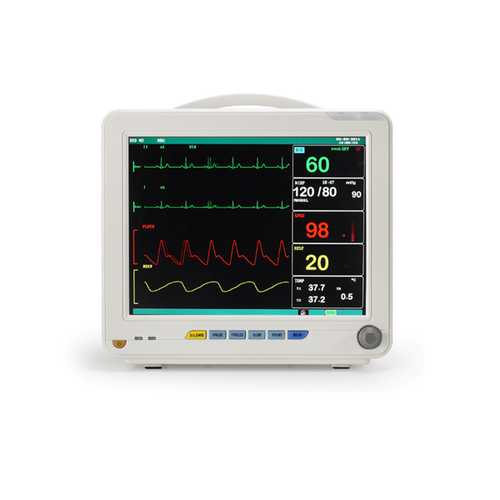

multipara monitor mpm-12.1

description

Used for Cardiac monitoring, ICU set up at home
It measures- SPO2, BP, PR/ECG, Resp rate and tempt
Low power consumption, user friendly

Brand: Niscomed

specification

• Temperature – working – 5 ~ 40 C,
• Transportation and Storage – 20 ~ 60 C,
• Humidity – Working – 80%,
• Transportation and Storage – 95%,
• Altitude – Working – -500 to 4,600m ( – 1600 to 15000ft ),
• Transportation and Storage – -500 to 13100m ( -1600 to 43000ft ),
• Power supply – 100 ~ 240 V AC, 50/60 (HZ),
• Pmax = 150 VA,
• Fuse T 1.6A.

features

• ECG : 5-lead, dual channel, 3-lead, single channel.
• Scan speed: 12.5 mm/s, 50 mm/s. ST segment monitoring,
• Measurement and alarm range: -2.0 mV ±2.0 mV.
• RESP: Method: R-F (RA-LL) impedance,
• Measurement and alarm range: 0-150 rpm, Apnea alarm: 10-40 sec.
• NIBP: Method: oscillometry, Mode: manual/AUTO/continuous, Measurement interval in AUTO mode:
• 1/2/3/4/5/10/15/30/60/90/120/240/480/960 min, Measurement period in CONT mode: 5 min
• Measurement alarm: 10-270 mmHg SpO2,
• Measurement and alarm range: 0-100%
• Measurement accuracy: 70-100% ±2%.
• PR: Measurement and alarm range: 30-250 bpm.
• TEMP: Channel: dual channel
• Measurement and alarm range: 0-50 °C
• Power supply: 110-240 V – 50/60 Hz
• Safety classifi cation: Classe I type CF
• Defi brillation-proof applied part.
