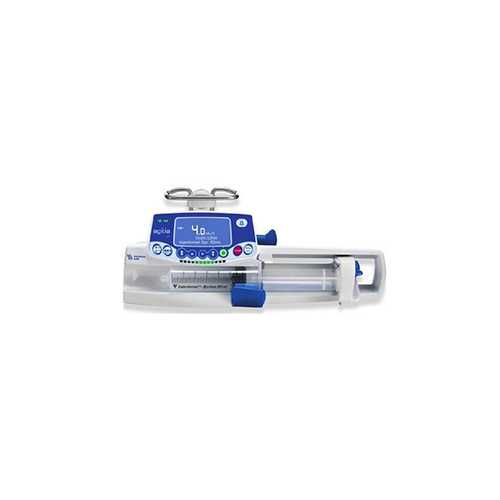

syringe pump – agilia sp

description

A syringe pump is a small, positive-displacement pump used to gradually transfer precise volumes of fluid. Chemyx Fusion Series syringe pumps are all driven via a stepper motor. A lead screw, threaded through a pusher block, precisely turns the pump’s stepper motor. This causes the pusher block to move.

Brand: FRESENIUS KABI

specification

Pump status
GREEN for infusion in progress, ORANGE for Low and Medium priority, RED for High priority – Visibility at 4 meters minimum.

All alarms are expressed by means of light indicators, written words,
pictograms and sound beeps.
Syringes installation control
Syringe barrel clasp check, plunger head detection, anti-siphon system check, flange detection.
Infusion control
Occlusion pressure pre-alarm, occlusion pressure alarm, end of infusion
pre-alarm, end of infusion alarm, volume limit pre-alarm, volume limit
alarm, hard and soft flow rate limits, start infusion at pause end.
Device control
Disengaged driving mechanism alarm, low battery pre-alarm, discharged
battery alarm, battery capacity display in hours and minutes, unconfirmed
programming, technical malfunction alarm (auto-test, rotation), drive
system advance check, watchdog check, communication connection failure,
plug-head disengagement, auto-lock/lock code (on Keypad).

dimension

Dimensions: 135 X 345 X 170 mm (H/W/D)
Flow Rate Range 0.1 – 1200 mL/h, depending on the syringe capacity.
Bolus Direct bolus Rate 50 – 1200 mL/h (50 mL/h increment).
End infusion KVO adjustable from 0.1 to 5 mL/h, continuous infusion or stop.(V/T & VL)
Pause Programmable from 1 minute to 24 hours, increments from minute to minute.
Datalog event 1500 data log events in real-time.
