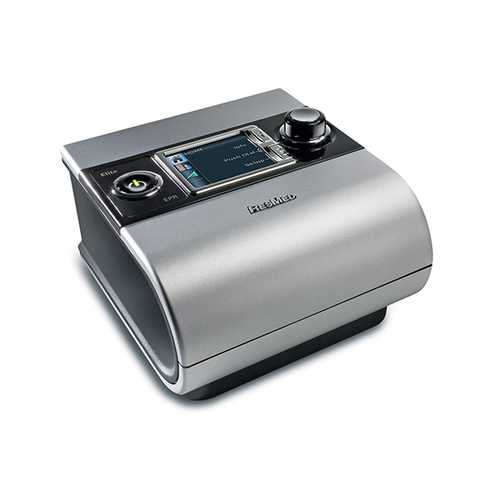

resmed s9 elite

short description

• For OSA patient weighing more than 30 kg and intended for home and hospital use.
• User Friendly controls and intuitive interface guide
• Integrates with H5i heated humidifier with climate control.

description

PORTEA provides Rent and Sale equipment and support to S9 Elite-dependent patient. We can help you decide the best product and range of administration for your requirements.

The S9 Elite CPAP is the premium nonstop positive airway pressure (CPAP) show in ResMed’s S9 series. With discretionary completely integrated humidification and a compact outline, the Resmed S9 Elite CPAP gives agreeable all in one treatment without compromise.

features

• Easy to understand Patient Reminder System cautions you when it’s an ideal opportunity to replace parts or contact your specialist provider.
• ResScan Data Card gives your clinician a chance to change your treatment settings remotely without a visit
• More comfort than standard CPAPs
• Optional HumidAire 5i coordinated humidification
• Complete efficacy and consistence information
• flexible patient administration options
• SmartStart™/Stop
• Automatic altitude adjustment
• optional completely incorporated humidification with fliptop lid
• 12V or 24V DC input by means of ResMed’s discretionary DC-12 converter.
• Ramp and settling alternatives upgrade comfort and help improve consistence.

specifications

• Operating pressure range:(manual altitude adjustment) 4-20 cm H2O
• S9 Elite CPAP Dimensions: (H x W x L) 3.4″ x 5.5″ x 6.0″; (86mm x 140mm x 153mm), Weight ­ Flow generator: 1.8 lb; (810g)
• S9 Elite CPAP Power supply input range: 100-240V AC, 50/60Hz, 12V or 24V DC via ResMed´s DC-12 converter.
• S9 Elite CPAP Data Storage: Data includes usage, leak, AHI, events and pressure.
• Via cable: 365 sessions of summary data, five sessions of detailed data.
• ResScan Data Card: 180 sessions of summary data, five sessions of detailed data.
• Data also available via the LCD menu. For clinicians only.
• S9 Elite CPAP Housing construction: Flame retardant engineering thermoplastic
• Operating temperature:+41°F to +104°F (+5°C to +40°C), Air filter Two-layered, powder-bonded, polyester non-woven fibre, Air tubing Flexible plastic, 6″6’ (2 m) length, Classification Class II (double insulated), Type CF IPX1 US FCC Part 15, Class B*& IEC 60601-1
• Before using on an aircraft, consult the medical department.
