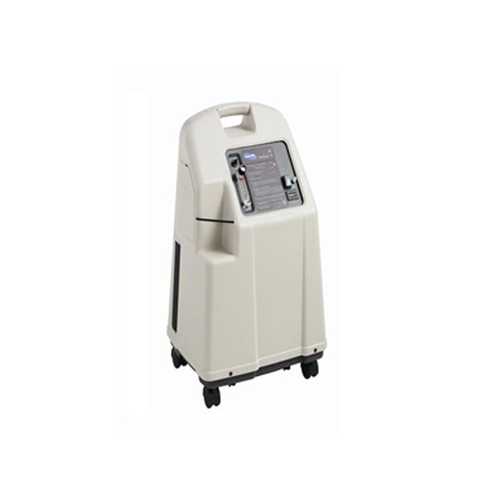

invacare platinum 9 lpm oxygen concentrator

Book Equipment

*I authorize Portea representative to contact me. I understand that this will override the DND status on my mobile number.


PORTEA provides Rent and Sale equipment and support to 9 Litre Oxygen Concentrator – dependent patient. We can help you decide the best product and range of administration for your requirements. Invacare Platinum 9ltr is suitable for patients requiring high levels of oxygen supply. It has user friendly flow meter with its 9 litre oxygen capacity and 87-96% purity. Invacare platinum 9 is proven platinum series technology and twin head compressor ensuring better reliability. It has –Sens O2 system for continuous oxygen monitoring. It has automatic circuit breaker with low maintenance costs and guaranteeing extra safety for its users. It is compatible with HomeFill and this device can be easily moved by the patients wherever they go


Adjustable flow range: 1-9 L/min.
Oxygen outlet temperature: +2.2 / ambient temperature
Low oxygen flow sound alarm: < 1 L/min
Oxygen outlet pressure: 62kPa
Sound level: <50 dB average.
Concentration Alarms: >85% Green light, >73% Yellow light, <73% Red light and sound
Oxygen Concentration:
7 L/min: 95.6 – 93%
8 L/min: 95.6 – 91%
9 L/min: 95.6 – 87%
Electrical requirements: 230 VAC, 50-60Hz
Average power consumption: 475 W
Self-diagnostic system: failure code
