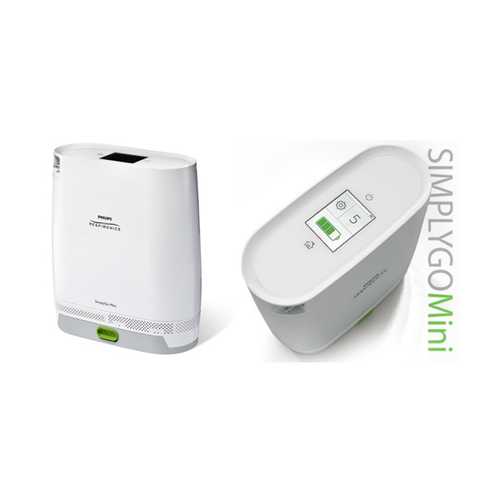

philips simplygo mini oxygen concentrator

description

PORTEA have been able to offer our esteemed patrons with the high-quality SimplyGo Mini Portable Oxygen concentrator. Philips Simply Go Mini Portable Oxygen Concentrator is a trustable and cost-effective mode of oxygen therapy. It is designed in such a way that the overall maintenance cost is relatively low. Philips Simply Go Mini Portable Oxygen Concentrator is very easy to use as well as to maintain.

conditions used for

• Asthma
• COPD
• Heart Failure
• Sleep Apnea
• Pneumonia

features

Simply smallest, lightest, and smart POC design by Philips
Easy to remove external battery facility
Lightweight POC (5.0 LBS; 2.6 kg)
Intuitive and easy-to-read screen
Strong and comfortable carry case
With its sleek, lightweight, and non-clinical design, SimplyGo Mini doesn’t draw attention to itself.
A stylish case is included for a comfortable way for you to carry by hand or over your shoulder.
SimplyGo Mini offers easy to-change lithium-ion battery options with standard AC and DC power cords that add convenience and flexibility.
Choose the power option that works best for your lifestyle needs Available battery options:
Standard battery for battery duration up to 4.5hours* (pulse setting of 2 at 20 BPM). Resulting in total SimplyGo Mini weight of 5 lbs.
Extended battery for battery duration up to 9 hours* (pulse setting of 2 at 20 BPM). Resulting in a total SimplyGo Mini weight of 6 lbs.
The manufacturer of this POC has determined this device conforms to all applicable FAA requirements for POC carriage and use onboard aircraft.

specification

Sound Level : 42 dBA typical at setting 2 and 20 BPM
Audio Alarm : 45 dBA or greater
Maximum OutletPressure :20 psig
SimplyGo Mini Battery.Lithium Ion 14.4 VDC (nominal)
Battery Options : Standard Battery-Extended Battery (equals 2 standard batteries)
Dimensions: 7.9 in x 3.6 in x 1.0 (standard battery)(20.1 cm x 9.1 cm x 2.5 cm)
7.9 in x 3.6 in x 1.9 in (extended battery)(20.1 cm x 9.1 cm x 4.8 cm)
Weight :1.1 lbs (0.50 kg) (standard battery)
2.1 lbs (0.95 kg) (extended battery)

Watt-hour Rating Per :Standard Battery 3.4 Ah x 3.6 V x 8 cells = 97.9 Wh
Altitude : up to 10,000 ft. (3048 m.)
Storage and TransportConditions : -4° F to 140° F (-20° C to 60° C) – unit only
Relative humidity : up to 93%, non condensing
Oxygen Concentration :At least 87% at all settings (maximum of 96%) over the rated environmental range
Breathing Frequency : Up to 40 BPM
Inspiratory Trigger Sensitivity := 0.2 cm H2O
User Interface : Capacitive Touch Screen
Operating Conditions.
Operational temperature: 41° F to 95° F (5° C to 35° C)
Relative humidity: 15% to 93%
Atmospheric Pressure: 700 hPa to 1010 hPa

dimensions

• 9.4 in x 8.3 in x 3.6 in (standard battery)
• (23.9 cm x 21.1 cm x 9.1 cm) 10.2 in x 8.3 in x 3.6 in (extended battery)
• (25.9 cm x 21.1 cm x 9.1 cm)
• WEIGHT- 5.0 lbs (2.3 kg) with standard battery installed 6 lbs (2.7 kg) with extended battery installed
